Gate driver：Skyworks Si8284 Overview Report

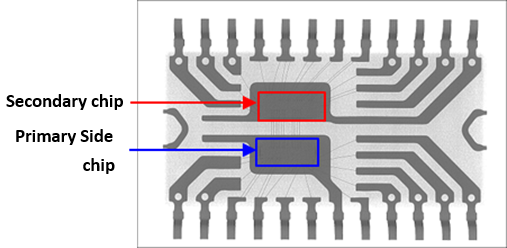

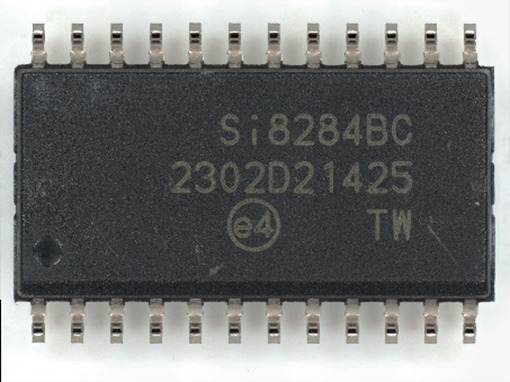

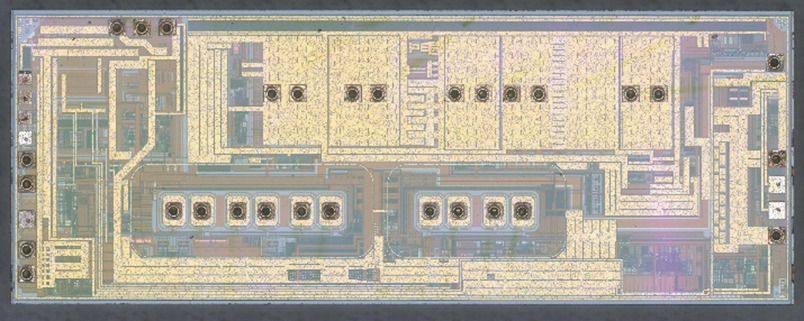

Package	Package (inside)	Die image (secondary side)

Report summary

　Distributed power supply systems that use gate drivers with built-in flyback converters are attracting attention for EV in-vehicle inverters because they allow for reductions in mounting area and cost. The Si8284 released by Skyworks is a gate driver with a built-in flyback converter control, and features a fast DESAT function detection time of less than 1 us and a high isolation voltage of 5.0 kVrms.

This report includes die image, (top metal and gate layer), cross section (logic area)  and process node identification.

Product specifications and feature

• Skyworks Si8284 (October 2022)

https://www.skyworksinc.com/en/Products/Isolation/Si828x-Isolated-Gate-Drivers/Si8284ED-IS

• Drive side power supply voltage 30V, drive current capacity ~4A, various UVLO voltages 3~15V, Output voltage range VOUT: 1.0~4.5V
• IGBT/SiC compatible DeSat detection/Soft Shutdown (＜1us high speed short protection)
• Fault feedback function that notifies the system of abnormal conditions
• Built-in approximately 80% high-efficiency isolated DCDC converter circuit
• Uses Skyworks’ proprietary silicon insulation technology to support withstand voltages of up to 5.0 kVrms
• Common mode transient immunity (CMTI) 125kV/us

Report contents （28 pages)

• Package image and X-ray image
• Die image and size of primary side and secondary side
• Secondar die (gate layer image, logic area cross section, process rule identification

Please contact us for report pricing.
